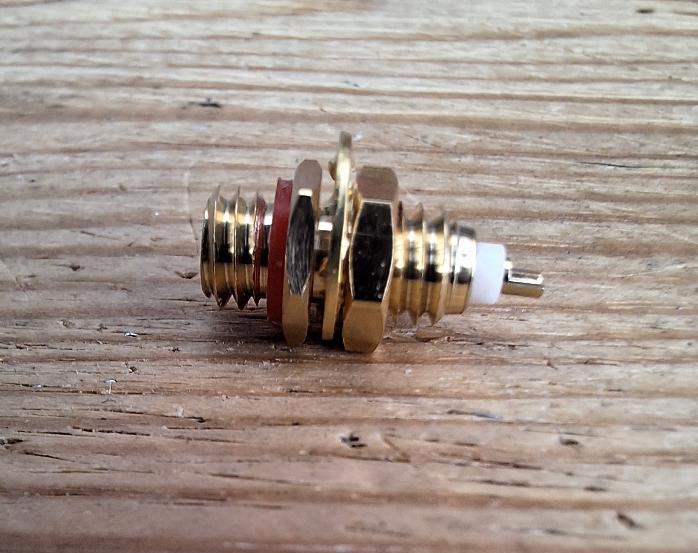

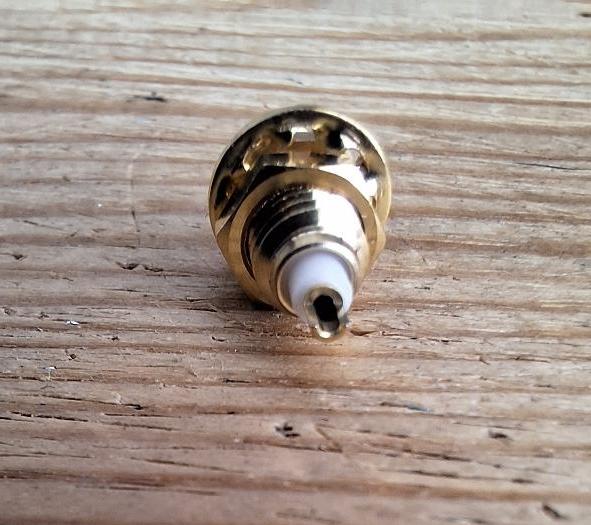

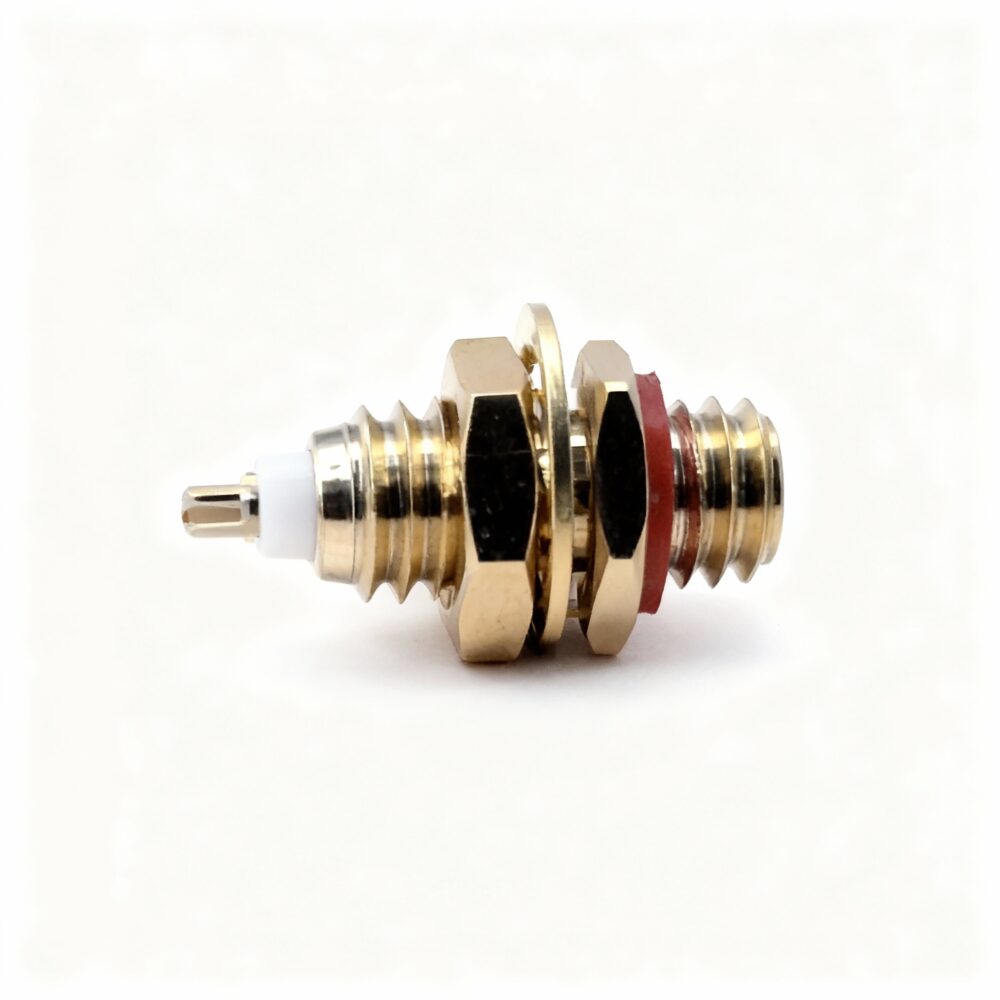

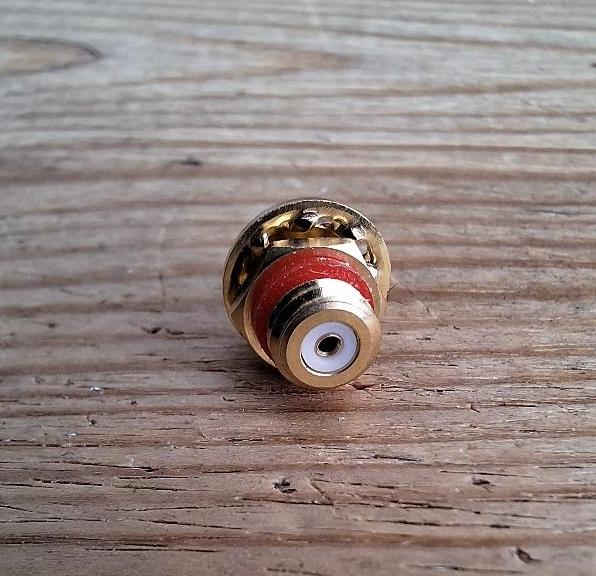

10-32 Microdot Jack RF Connector – Bulkhead Solder 50 Ohm

Product Description Part Number: CH-MDJ-00-BH Connector: 10-32 Microdot (S-50 compatible) Type: Jack Bulkhead (female centre contact, with o-ring) Termination: Solder Spill (solder bucket) This coaxial connector 10-32 Microdot jack bulkhead o-ring solder spill provides a robust panel mount feedthrough for routing RF signals through enclosures, equipment housings, and instrument panels. The integrated o-ring seal offers environmental protection when mated, making it suitable for industrial and laboratory environments. The jack (female centre contact) features solder spill termination—also known as solder bucket or solder cup—for direct cable attachment. The 10-32 UNF threaded interface ensures compatibility with standard Microdot plugs commonly used on IEPE accelerometers, vibration transducers, and test equipment. Specifications Connector Series: 10-32 Microdot (S-50 compatible) Gender: Jack (female centre contact) Mounting: Bulkhead / Panel Mount Thread: 10-32 UNF Termination: Solder Spill (solder bucket) Seal: O-ring Impedance: 50Ω Typical Applications Accelerometer and vibration sensor enclosures Instrumentation panel feedthroughs Test and measurement equipment housings Non-destructive testing (NDT) systems Ultrasonic and acoustic sensor interfaces Data acquisition system enclosures For mating cables and adapters, see our full range of 10-32 Microdot connectors.
