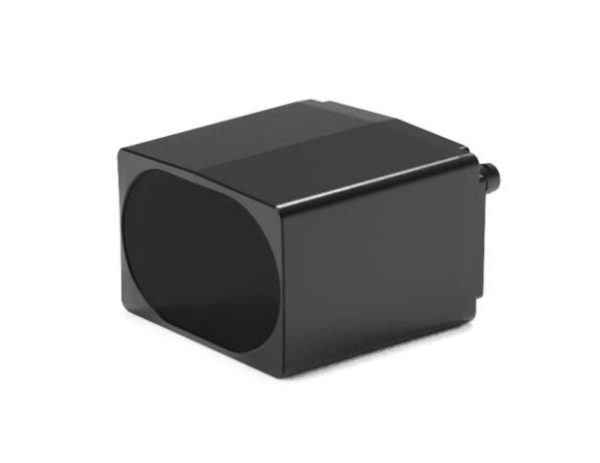

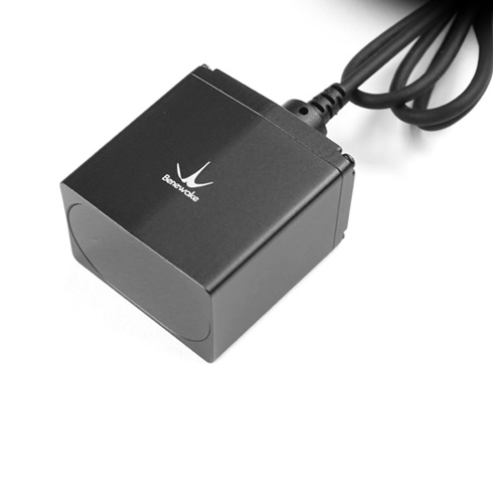

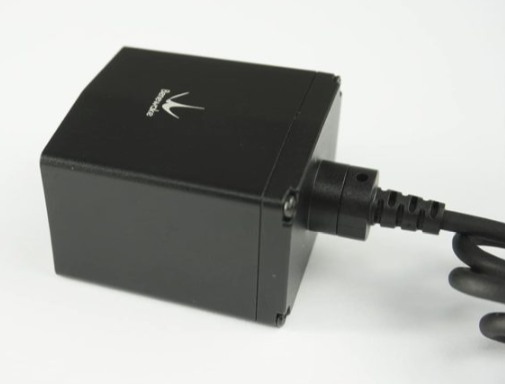

Benewake TF03 180M Long Distance Laser Lidar/Rangefinder for Drones, UAV UAS Robots.

TF03, as a single-point long distance LiDAR in accordance with the industrial level, mainly targets the intelligent transportation system, industrial UAV, automotive and other industrial applications. To maximize different requirements in different applications and scenarios, TF03 can be compatible with a variety of communication interfaces, featuring IP67 high-intensity bodywork and the measurement frequency as high as 10KHz. It not only has powerful performance and rich interfaces but also is small in volume, so that it could be integrated more easily in applications. In addition, TF03 contains a compensation algorithm targeting outdoor highlight environment, so that it could still work normally in highlight environment. Besides, it also has a variety of measurement models and parameters for custom configurations, so as to meet the ranging needs of different customers. As the third generation product of TF series, TF03 inherits the cost-effective and compact- integration characteristics of the previous two generations. Meanwhile, TF03 upgrades more than ten key parameters and offers multiple expansion functions to meet the various demands in different application areas. The product is applicable to the terrain following of drones, the collision avoidance of cars, intelligent transportation and industrial safety warning. Ranging Principle: TF03 uses the pulse method to range the distance based on TOF (Time-of-Flight). Specifically, TF03 emits a beam of the light pulse which will be reflected by the object and received by TF03 again.TF03 calculate the time of flight in the course of the round trip and thus obtain the relative distance between TF03 and the measured object. Features: Wide range, as far as 180m. Multi-interface compatibility, able to be used in many fields. IP67 high-strength bodywork and high reliability. Small in volume and easy to be integrated. High-speed measuring up to 10KHz, high repeated accuracy. Excellent highlight interference, able to be used outdoors. Application Areas: Vehicle Classification recognition and vehicle counting UAV altitude holding and auxiliary landing Car collision avoidance Civil/industrial material level monitoring Safety warning. For Detailed Description About Product go through Datasheets in Attachments. Package Includes: 1 x Benewake TF03 180M Long Distance Laser Lidar/Rangefinder for Drones, UAV UAS Robots SKU: PGI-00170838 Category: Lidar Sensor
